HAProxy Secure Deployment & Hardening Guide

(CIS-Inspired Control Framework)

Intro

HAProxy (High Availability Proxy) is a world-class, open-source load balancer and reverse proxy designed for high-performance TCP and HTTP-based applications. Since its initial release in 2001, it has become a industry standard for its extreme reliability, speed, and efficient use of system resources.

Core Functionality

Load Balancing: Distributes incoming traffic across multiple backend servers to prevent overloads and ensure high availability.
Proxying (L4 & L7):

- Layer 4 (TCP): Routes traffic based on IP and port without inspecting the packet content, ideal for fast, generic protocol handling.
- Layer 7 (HTTP): Inspects the application layer (headers, cookies, URL paths) for intelligent content-based routing.
- Security & Hardening: Acts as a defensive layer by providing SSL/TLS termination, rate limiting, DDoS protection, and protocol normalization to protect backend servers from malformed requests.

Key Technical Components

Frontend: The “entry point” where you define the IP and port HAProxy listens on.
Backend: The pool of servers that receive forwarded requests. HAProxy uses health checks to automatically remove failed servers from these pools.
ACLs (Access Control Lists): Powerful conditional logic used for routing decisions, such as sending traffic to different backends based on the requested URL path.
Algorithms: Supports various methods to pick servers, including roundrobin (sequential), leastconn (fewest active connections), and source (hashing client IP for session stickiness).

HAProxy is trusted by global platforms like GitHub, Reddit, Stack Overflow, and Twitter to handle millions of simultaneous connections with sub-millisecond latency.

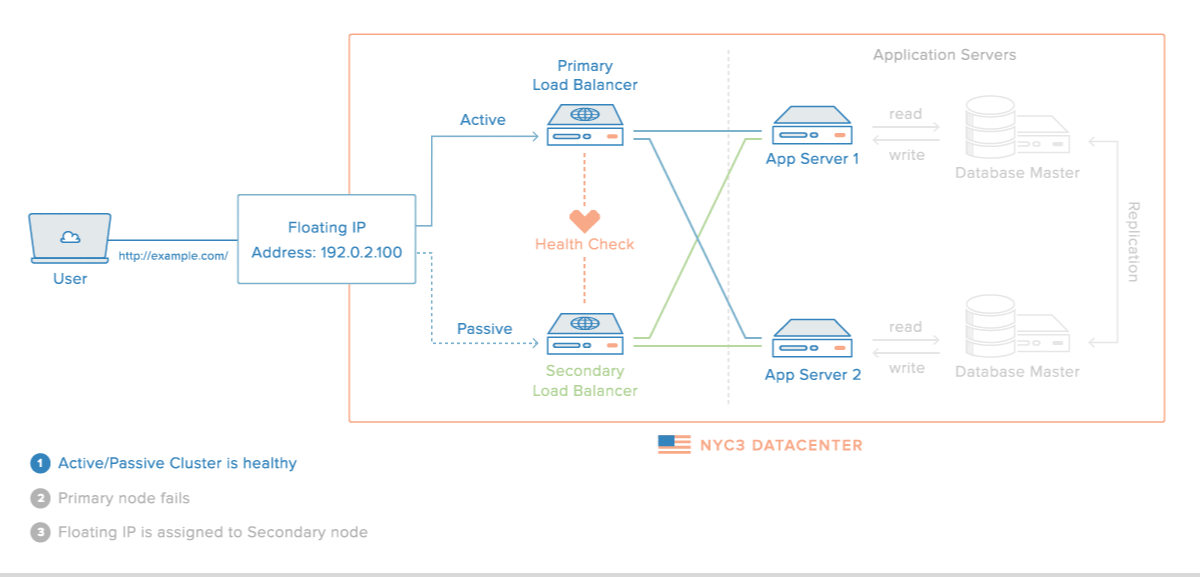

HAProxy “reference” architecture:

Scope & Assumptions

• HAProxy ≥ 2.6 (LTS recommended)
• Linux hosts (Debian / Ubuntu / RHEL family)
• Used for L4/L7 load balancing, TLS termination, reverse proxy
• Managed by Infra / NetOps teams with SOC visibility

Control Structure (CIS-Style)

Each control includes:

• Control ID
• Title
• Intent
• Rationale
• Implementation Guidance
• Audit / Validation Method
• Severity
• Automatable (Yes / Partial / No)

1. Installation & Supply Chain Security

HAP-1.1 — Install HAProxy from Trusted Sources

Severity: High | Automatable: Yes

Intent
Ensure HAProxy binaries are obtained from trusted, verified sources.

Rationale
Compromised packages introduce immediate supply-chain risk.

Implementation

• Use OS vendor repositories or official HAProxy packages
• Verify GPG signatures where applicable

apt-cache policy haproxy
rpm -qi haproxy

Audit

• Package origin matches trusted repository
• No manually compiled binaries in production

HAP-1.2 — Disable Unused Build Features

Severity: Medium | Automatable: Partial

Intent
Reduce attack surface by disabling unnecessary HAProxy features.

Rationale
Unused Lua, SPOE, or debug features increase exploitability.

Implementation

• Prefer distro packages with minimal modules
• Avoid custom builds unless strictly required

2. Process & Privilege Hardening

HAP-2.1 — Run HAProxy as a Non-Root User

Severity: Critical | Automatable: Yes

Intent
Limit blast radius in case of compromise.

Implementation

global
  user haproxy
  group haproxy
  chroot /var/lib/haproxy

Audit

• Process owner ≠ root
• Chroot directory exists and is minimal

HAP-2.2 — Enable Chroot Jail

Severity: High | Automatable: Yes

Rationale
Prevents filesystem traversal and post-exploitation tooling.

Audit

ps aux | grep haproxy

3. Network Exposure & Listener Security

HAP-3.1 — Explicitly Bind to Required Interfaces Only

Severity: High | Automatable: Yes

Intent
Prevent unintended exposure.

bind 192.168.10.10:443 ssl

❌ Avoid:

bind *:443

HAP-3.2 — Separate Frontend and Backend Networks

Severity: High | Automatable: Partial

Rationale
Prevents lateral movement if HAProxy is compromised.

Guidance

• Frontend: public / DMZ VLAN
• Backend: internal-only network

4. TLS & Cryptographic Hardening

HAP-4.1 — Enforce Strong TLS Protocols

Severity: Critical | Automatable: Yes

ssl-default-bind-options no-sslv3 no-tlsv10 no-tlsv11
ssl-default-bind-ciphers TLS_AES_256_GCM_SHA384:TLS_AES_128_GCM_SHA256

HAP-4.2 — Disable Weak Ciphers and Renegotiation

Severity: High | Automatable: Yes

Audit

openssl s_client -connect lb:443

HAP-4.3 — Secure Certificate Storage

Severity: High | Automatable: Partial

Guidance

• Certificates readable only by haproxy user
• Prefer short-lived certs (ACME)

5. HTTP Security Controls

HAP-5.1 — Enforce Secure HTTP Headers

Severity: High | Automatable: Yes

http-response set-header X-Frame-Options DENY
http-response set-header X-Content-Type-Options nosniff
http-response set-header Referrer-Policy strict-origin
http-response set-header Content-Security-Policy "default-src 'self'"

HAP-5.2 — Disable HTTP Methods Not Required

Severity: Medium | Automatable: Yes

http-request deny if { method TRACE }

6. Authentication & Administrative Access

HAP-6.1 — Protect HAProxy Stats Interface

Severity: Critical | Automatable: Yes

listen stats
  bind 127.0.0.1:8404
  stats enable
  stats auth admin:STRONGPASSWORD

Never expose stats publicly.

HAP-6.2 — Restrict Admin Interfaces by IP

Severity: High | Automatable: Yes

acl admin_net src 10.0.0.0/24
http-request deny unless admin_net

7. Logging, Monitoring & Detection

HAP-7.1 — Enable Detailed Access Logging

Severity: High | Automatable: Yes

global
  log /dev/log local0
  log /dev/log local1 notice

HAP-7.2 — Forward Logs to Central SIEM

Severity: High | Automatable: Yes

Guidance

• Syslog-NG / rsyslog → SIEM
• Include frontend/backend name, status codes, timings

HAP-7.3 — Detect Abuse Patterns

Severity: Medium | Automatable: Partial

Examples:

• Excessive 4xx / 5xx
• TLS handshake failures
• Backend flapping

8. Availability & Resilience

HAP-8.1 — Enable Health Checks

Severity: High | Automatable: Yes

option httpchk GET /health

HAP-8.2 — Rate-Limit Requests

Severity: High | Automatable: Yes

stick-table type ip size 1m expire 10m store http_req_rate(10s)
http-request deny if { sc_http_req_rate(0) gt 100 }

9. Configuration Management & Change Control

HAP-9.1 — Validate Configuration Before Reload

Severity: Critical | Automatable: Yes

haproxy -c -f /etc/haproxy/haproxy.cfg

HAP-9.2 — Version-Control HAProxy Configuration

Severity: Medium | Automatable: Partial

Guidance

• Git-based config repo
• Mandatory peer review

10. Backup, Recovery & Incident Readiness

HAP-10.1 — Backup Config and Certificates

Severity: High | Automatable: Yes

HAP-10.2 — Define HAProxy Incident Playbooks

Severity: Medium | Automatable: No

Scenarios:

• Cert compromise
• Backend breach
• L7 abuse / DDoS
• Misrouting / header injection

Summary: Control Coverage Map
